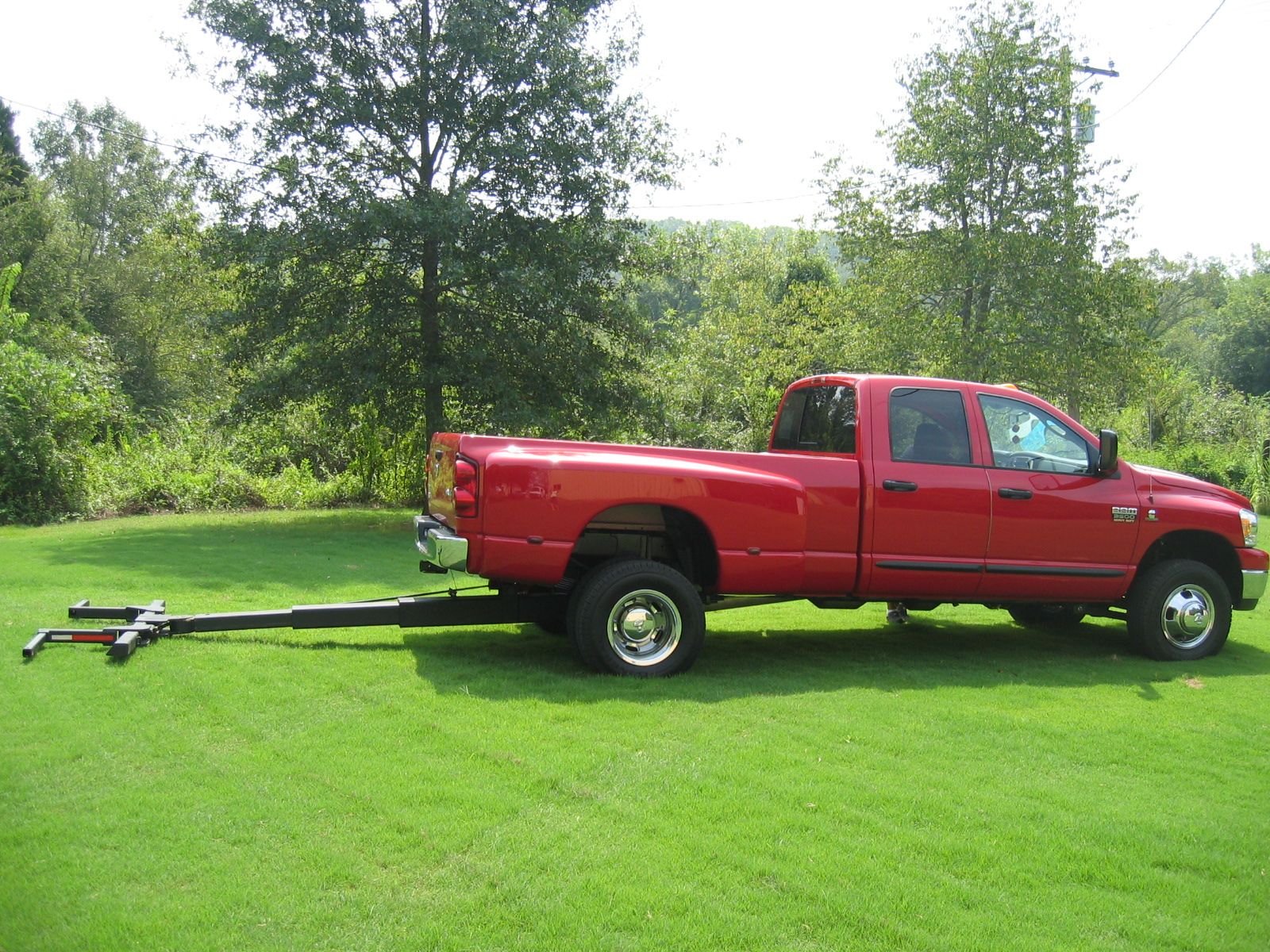

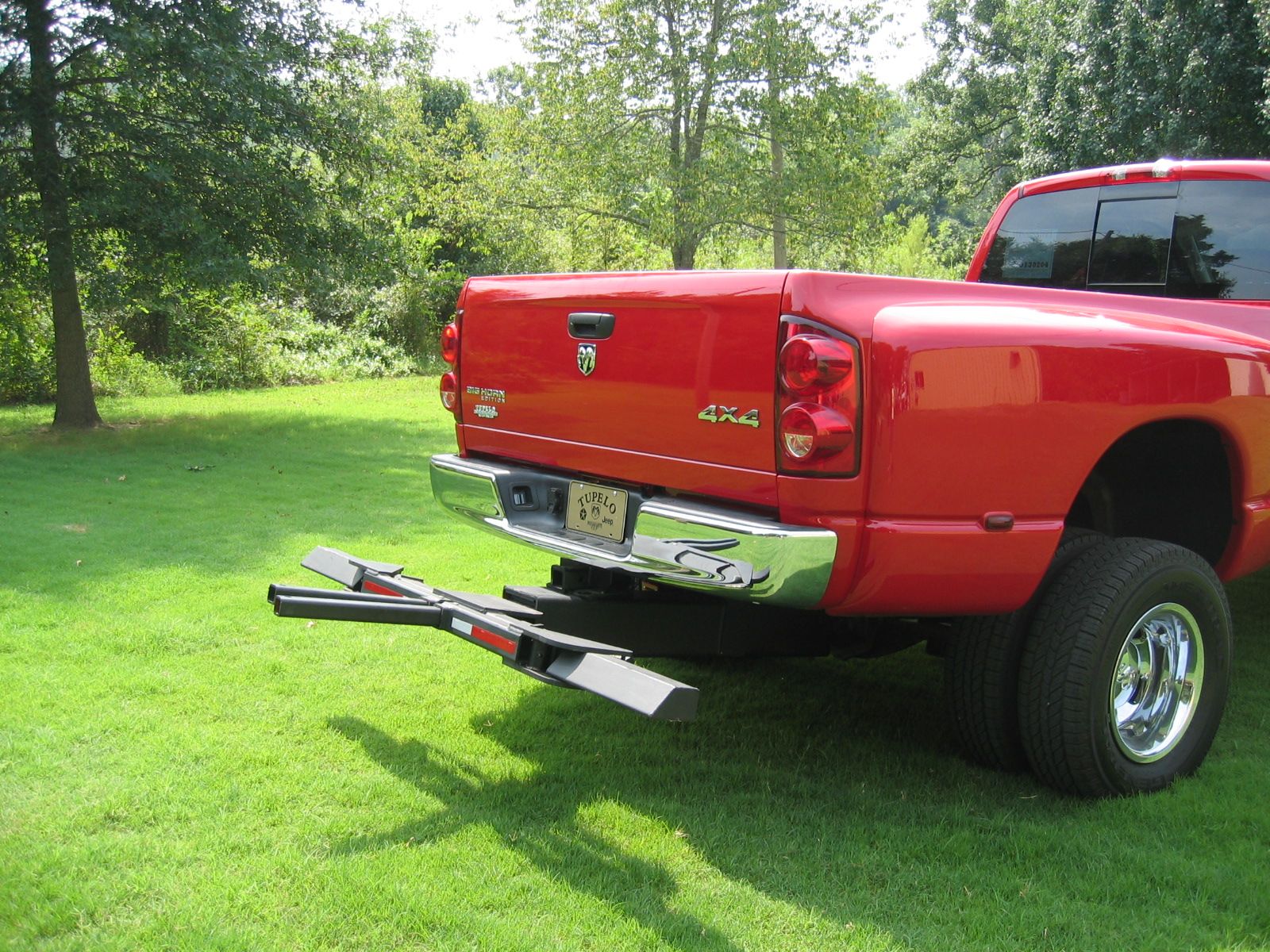

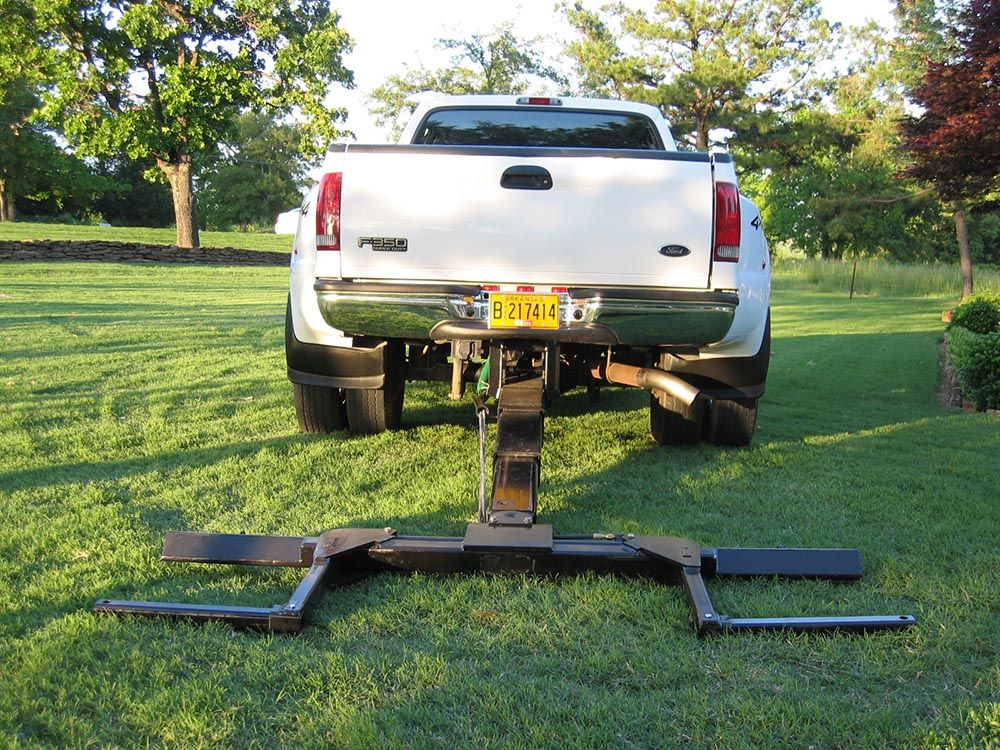

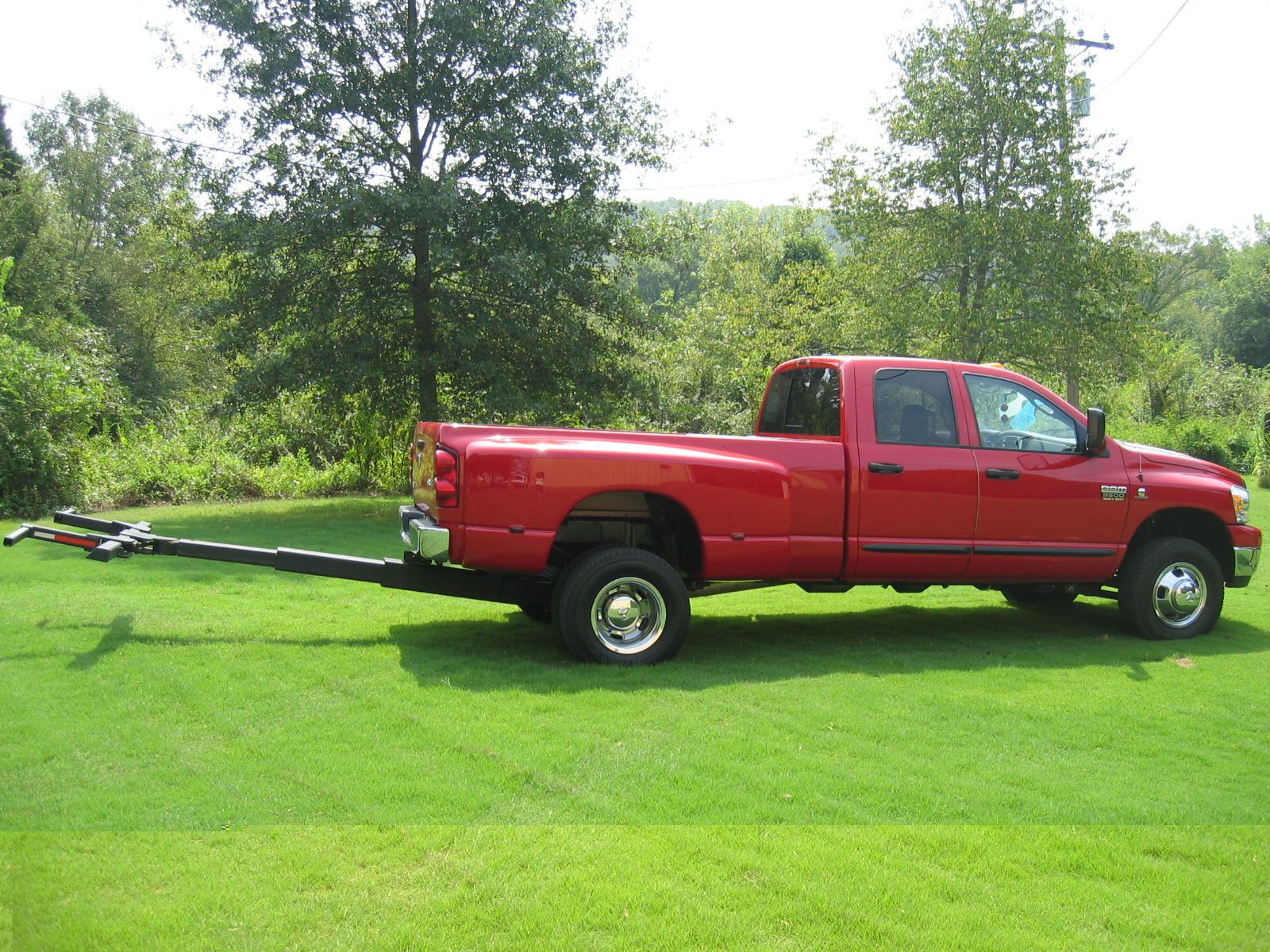

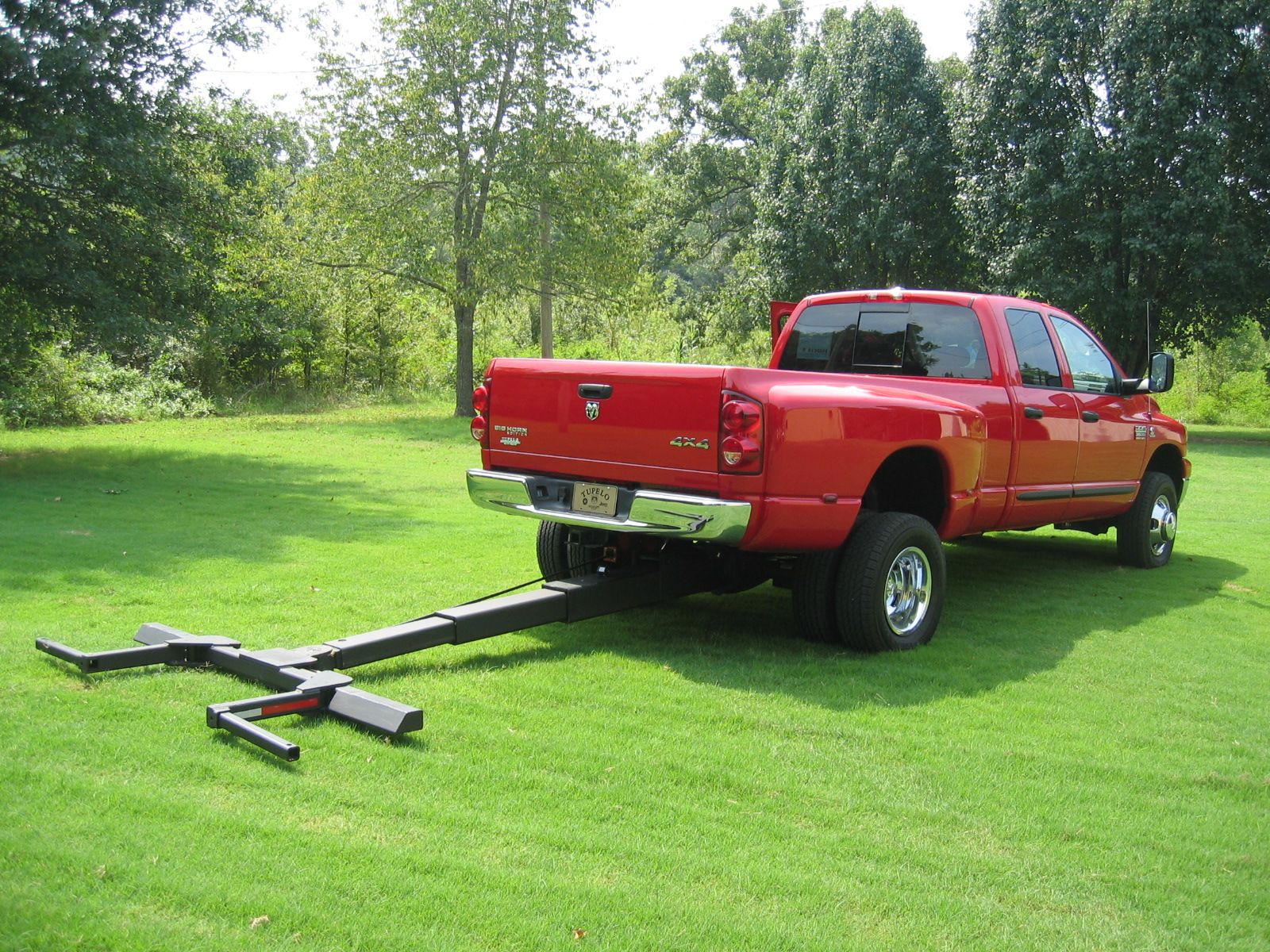

The third generation Magnum wheel lift has evolved over the past years to be one of the strongest and most durable wheel lift in the industry.

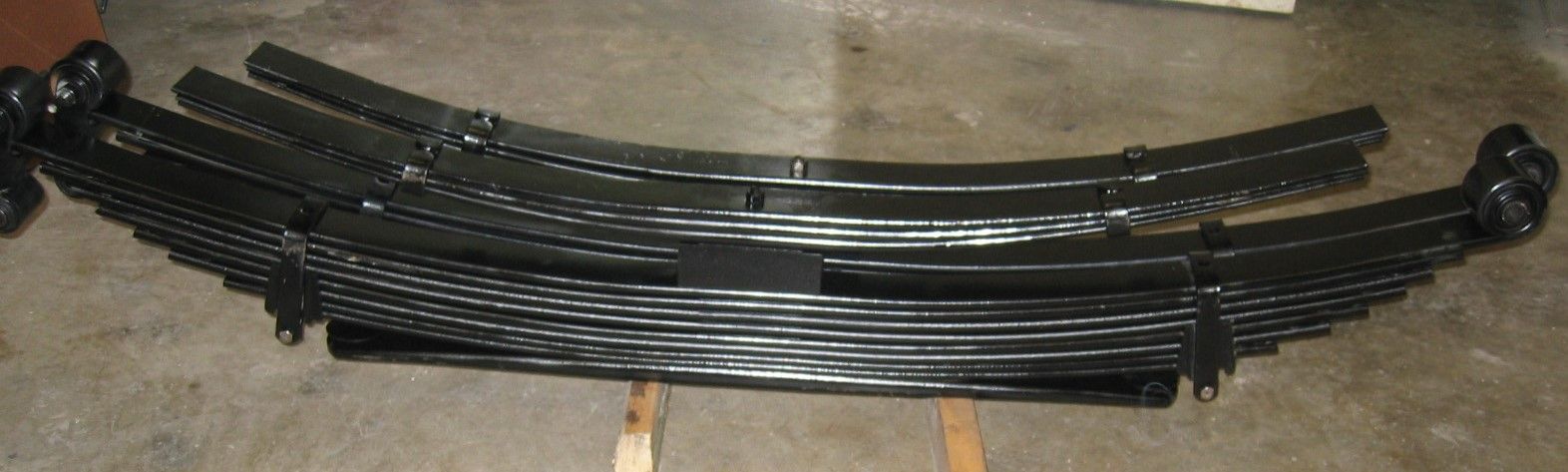

The Magnum was designed for one ton, or larger, trucks with leaf spring suspension (suspension upgrading and frame reinforcement is HIGHLY RECOMMENDED, coil spring will not work). Our massive 5" cylinder is rated at 3500 lbs. lift and 7500 lbs. towing capacity. The Magnum has been around for years and is one of most durable, versatile, and longest lasting lifts in the industry! It is the most efficient way for you to have a repo or recovery vehicle. The underbody design allows you to have a tow vehicle without losing the bed of the truck. Removable L arms are also an added benefit.

Magnum wheel lift has a fixed focal point which allows for fewer moving parts to allow less wear and tear on the equipment. The wheel lift boom is set up in three stages, with the first two being manufactured exclusively for the Magnum, which allows for a full 72" reach. It also has thrush washer wear pads at the king pin for the strongest boom in a light wheel lift.

This unit has the option of fluid power 6 function standard pump at 1.5 gpm or the 6-function double pump at 3.25 gpm; both of which are electric over hydraulic; and there is always the option of the clutch pump.

STAY TUNED FOR A NEW VERSION WITH UPGRADED FEATURES, COMING SOON



Click to enlarge images:

  • 08_05_24_3082_2
  • 08_05_24_3087_2
  • 1507
  • 1522
  • 1636
  • 2298
  • Magnum-11_2
  • Magnum-12_2
  • Magnum-14_2
  • Magnum-15_2
  • Magnum-16_2
  • Magnum-17_3
  • Magnum-4_-_Copy
  • Magnum-5_8

AFFORDABLE TOWING OPTIONS MAKE THE DIFFERENCE

Turn your pickup into a tow truck with the Magnum Hydraulic Lift or Unilift / Slickster!

Used by Auto Dealers, Transmission and Repair Shops, Salvage and Auto Recovery / Repo
